The Aquatronica 465mV Redox Calibration Solution (ACQ-410-RX), available in a 50ml bottle, is used to properly calibrate an ORP (oxidation-reduction potential) or redox electrode. This allows for accurate measurement of the redox potential in either freshwater or saltwater aquariums.

What is ORP and why is it measured?
ORP, or Redox Potential, measures the ability of a solution to oxidize or reduce another substance. In aquariums, monitoring the ORP is a key way to determine the water quality and effectiveness of filtration. Calibrating the electrode ensures that your readings are accurate.

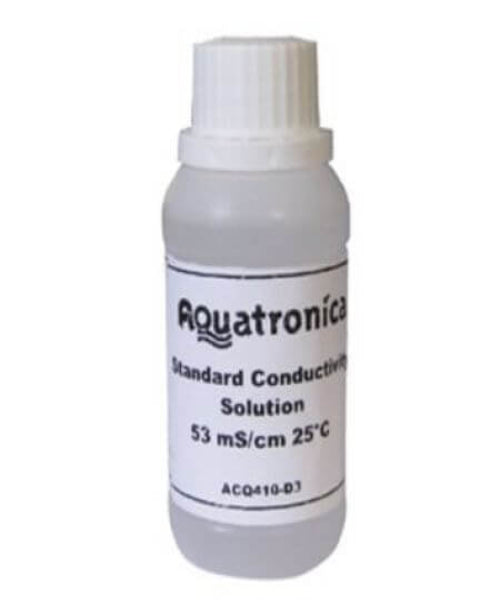

The Aquatronica 53 mS/cm Calibration Solution is a high-conductivity calibration fluid used specifically for calibrating Aquatronica's high-conductivity electrode. This solution is particularly formulated for monitoring the salinity in saltwater and reef aquariums.

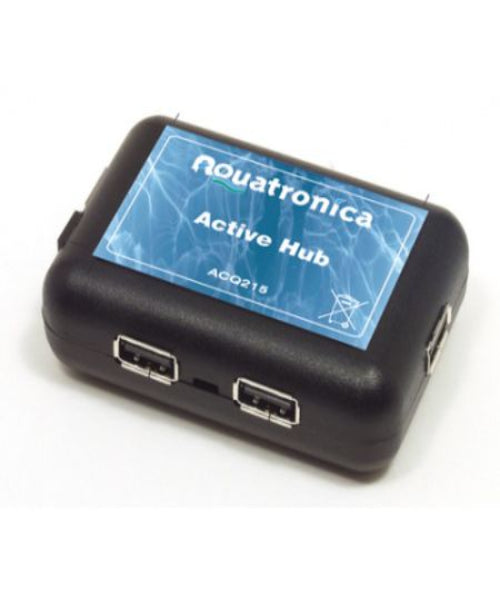

The Aquatronica Active Hub Interface Module (ACQ215) is an expansion component for the Aquatronica Aquarium Controller System. Its primary function is to increase the system's capacity by adding six additional data connections (BUS) for more accessories, sensors, and other modules. It is used when all connections on the power unit are already occupied.

How it works:

The Aquatronica system is modular, using a "Plug and Play" design that allows different components to be connected and automatically recognized by the central control unit.

• Expansion: The Active Hub expands the BUS connections, allowing the user to add more hardware, such as pH interfaces, conductivity interfaces, or dissolved oxygen interfaces, to an existing setup.
• Data transfer: The hub acts as a bridge for data communication, ensuring the controller can receive data from all connected sensors and send commands to all attached devices.
• Power: An included power adapter provides the necessary power to the Active Hub itself.

Active Hub vs. Other Interfaces:

It is important to distinguish the Active Hub from other Aquatronica interfaces, which serve different purposes:

• Active Hub (ACQ215): Provides additional data connection ports to expand the system's capacity for connecting more modules.
• Parameter interfaces (e.g., ACQ210N-PH): These modules are required for connecting specific probes, such as pH electrodes, to the system. Each parameter (e.g., pH, conductivity, dissolved oxygen) needs its own interface.
• Specialty modules: These are for controlling specific types of equipment. For example, the Tunze® Pumps Module (ACQ460) controls Tunze electronic pumps, and the Dosing Pump (ACQ450) manages automated liquid dosing.

• Product name: 3V button battery CR2032 type
• Purpose: Stores configuration data
• How to replace: The Aquatronica Touch Controller user manual describes the replacement process as follows:
  1. Remove the back cover of the device.
  2. Pull out the old battery.
  3. Insert a new 3V CR2032 battery.
  4. Replace the cover.

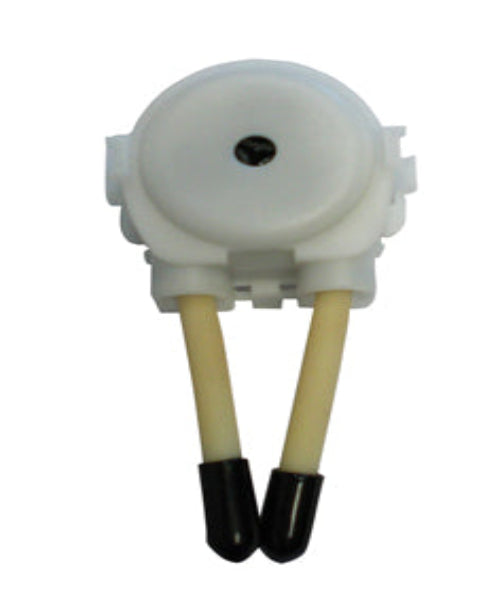

The Aquatronica Dosing Pump Head is a spare part (ACQ426) used to replace the worn-out peristaltic pump head on the Aquatronica Dosing Pump Module (ACQ450). Over time, the flexible tubing inside the head can lose its accuracy, so replacing it maintains optimal performance of your dosing system.

The Aquatronica Dosing Pump Head (ACQ426) is compatible with the Aquatronica Dosing Pump Module (ACQ450). The ACQ450 module features three independently controlled dosing pumps, and replacing the heads ensures continued, accurate dosing.

The Aquatronica Dosing Pump (ACQ450) is a module with three independent peristaltic pumps that connects to an Aquatronica aquarium controller system. It is used to automatically dose liquid supplements, elements, and additives into an aquarium to maintain stable water parameters.

Features & Benefits:

• Three independent pumps: The ACQ450 module has three peristaltic pumps that can be programmed independently. Peristaltic pumps use rollers to push liquid through a tube, ensuring a precise dose.
• Connection to Aquatronica controller: The dosing pump module connects to a central Aquatronica controller, such as the Touch Controller (ACQ140). All programming is done via the controller.
• Flexible dosing schedules: The system allows for a variety of dosing schedules:
• Single dose: Administers a specific amount of liquid at a fixed time on set days.
• Repeated dose: Repeats a dose at regular intervals, such as every few hours or days.
• Weekly dose: Administers a dose only on fixed days of the week.
• Distributed dosing: Spreads the total required dose evenly over a specified period.
• Sensor integration: Dosing can also be triggered based on data from other probes connected to the controller, such as pH or Redox sensors, to automatically correct the water's biological balance.
• Accessories: An accessories kit, the ACQ425, is available to connect the dosing pumps to supplement containers.

Operation and Installation:

• Setup: The pump is set up via the Aquatronica controller, where you can program the dose amount, frequency, and timing. The user manual provides detailed instructions.
• Hose connections: The user will need to connect tubing from the supplement containers to the dosing pump module and from the module to the aquarium or sump. An accessories kit can assist with this.
• Calibration: For the most accurate dosing, the pumps should be calibrated.
• Power loss memory: The controller retains the dosing schedule and time in the event of a power outage, thanks to an internal battery.

How it fits into the Aquatronica ecosystem:

The Aquatronica Dosing Pump is a specialized module that expands the functionality of the larger Aquatronica Aquarium Controller System. This modular design allows users to customize their aquarium automation setup by adding various components, including:

• Temperature probes
• pH probes
• Salinity probes
• Level sensors
• Other modules, such as one for controlling Tunze pumps

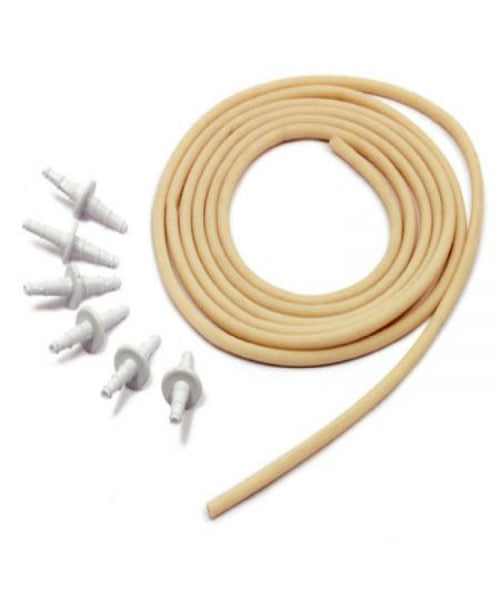

The Aquatronica Dosing Tubes are sold as an extension kit (product code ACQ425) for the Aquatronica Dosing Pump. Used to connect your Aquatronica Dosing Pump (ACQ450) to supplement containers.

Features & Benefits

• Contents: The kit includes 6 hose connectors and a 2-meter hose that can be cut to fit your setup.
• Tubing material: The material is made to be compatible with dosing iodine and other aquarium supplements.
• Purpose: replacing this spare part which can wear out over time, keeps the dosing pump in perfect operation and maintains its accuracy.

• Specs: Offers high-quality silicone tubing with an inner diameter of 3mm and an outer diameter of 5mm, designed for use in various brands of peristaltic pumps.
• Application: This type of tubing is an alternative for replacing worn hoses in the dosing heads.

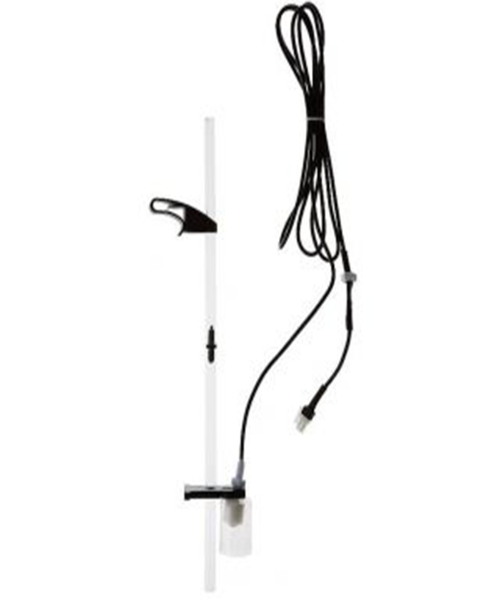

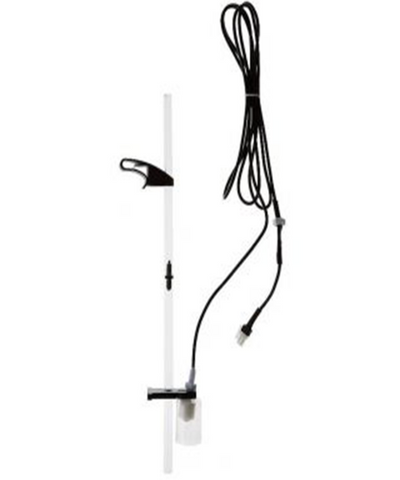

The Aquatronica system uses a Level Sensor to monitor and control the water level in an aquarium or sump, most often for an automatic top-off (ATO) function. The sensor works with a central Aquatronica controller unit and a specific Temperature & Level Interface.

Aquatronica Level Sensor components

• Sensor: The sensor itself detects the water level, allowing the Aquatronica controller to know when the water has dropped due to evaporation. This triggers a specific program, such as running a pump to add more water.
• Temperature & Level Interface (ACQ210N-TL): The sensor plugs into this dedicated interface, which then connects to the main Aquatronica controller unit via a data cable.
• Aquatronica Controller Unit: The controller unit, such as the Aquatronica Touch Deluxe or Evolution, processes the information from the level sensor and executes the pre-programmed actions. This could be powering a top-off pump connected to one of the system's power units.
• Expansion capability: A single controller system can support multiple power units and up to 20 sensors in total, which allows for multiple level sensors if needed.

How the Aquatronica system works:

An Aquatronica system equipped with a level sensor functions as an automated way to manage water levels.

• Monitor: The level sensor continuously checks the water level.
• Detect: When the water level drops and the sensor no longer detects water, it sends a signal to the Temperature & Level Interface.
• Command: The interface relays the information to the main controller, which then executes the user-defined program.
• Top-Off: The controller sends power to the top-off pump, which starts adding water from a reservoir.
• Stop: When the water level rises and the sensor is once again submerged, it signals the controller to shut off the pump, completing the top-off process

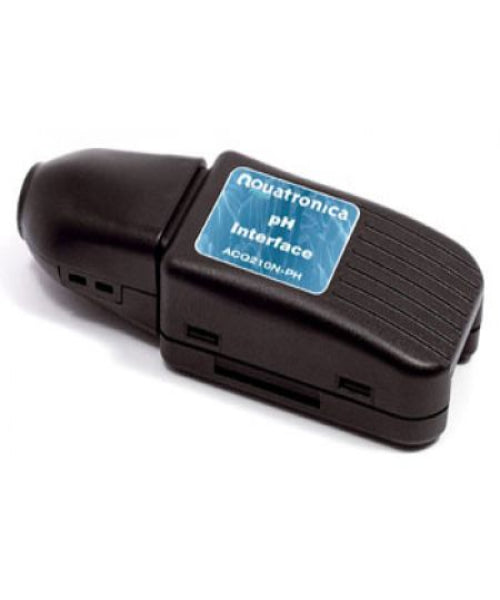

The Aquatronica pH Interface (ACQ210N-PH) is a module for the Aquatronica aquarium control system that allows for the measurement and control of the pH level in an aquarium. It is a "Plug & Play" device that is automatically recognized by the system when connected.

Features & Benefits:

• Measurement and control: The interface connects to a separate Aquatronica pH electrode (such as the ACQ310N-PH) to measure and check the pH value in the aquarium. The Aquatronica system then processes the data sent from the interface and can be programmed to control other devices to adjust the pH level.
• Plug & Play: Once the interface is connected to the system, it is automatically identified, and the relevant configuration menus are enabled.
• System integration: It connects to the main Aquatronica system via a BUS connection cable. Multiple interfaces, including several of the same type, can be connected to the system at the same time.
• Alarm functionality: The system is compatible with specific modules, such as Ethernet or GSM, which allow for alarm signals to be sent via email or SMS.
• Connections: The interface consists of a BUS connector for the system connection and a standard BNC connector for attaching the pH electrode.

What you need to use the interface:

• Aquatronica control unit: The interface is an add-on module for the larger Aquatronica system, such as the Aquarium Controller Evolution or the Touch Controller.
• Aquatronica pH electrode: The interface requires a separate pH probe, such as the Aquatronica pH Electrode (ACQ310N-PH), to function.
• Calibration fluid: You will need calibration fluids, such as Aquatronica pH 4, pH 7, and pH 10 solutions, to calibrate the pH electrode and ensure accurate readings.

To measure pH with the Aquatronica Aquarium Controller System, you need two components: the Aquatronica pH Electrode (ACQ310N-PH) and the Aquatronica pH Interface (ACQ210N-PH). The pH electrode reads the value in the aquarium, and the interface processes the data for the controller. The Aquatronica pH electrode (ACQ310N-PH) or probe measures the pH value directly in the aquarium water.

Features & Benefits:

• Function: It must be in continuous immersion to accurately measure pH.
• Lifespan: The typical lifespan of a pH probe is about 12–18 months, depending on use and maintenance.
• Replacement: The probe can be replaced separately when it no longer calibrates reliably.
• Compatibility: It connects to the pH Interface (ACQ210N-PH) via a standard BNC connector.

The Aquatronica Power Bar 6 (ACQ012) is a controllable power bar designed to be an integral component of an Aquatronica aquarium controller system. It provides six individually controlled sockets for switching on and off 230V aquarium equipment, such as pumps, heaters, and lighting. The power bar functions as both a control and power supply unit, connecting to a central controller, like the Aquatronica Touch Controller or Black Box Controller.

Features & Benefits:

• Controllable sockets: The six outputs on the power bar are individually controlled through the central Aquatronica controller.
• System integration: It is automatically recognized by the main controller in a "Plug & Play" fashion, integrating all settings and menus.
• Manual control: An Aquatronica controller kit allows for manual control of the sockets, which is useful during maintenance.
• Multi-timer function: Up to 160 programs can be set across all sockets to automate the on/off times for connected devices.
• Device control: It can be used to manage various aquarium functions when paired with other Aquatronica interfaces and sensors, including simulating wave and tide effects.
• Alarm functions: The system can produce sound and visual alarms to notify users of a malfunction in a connected device.

How to use:

To use the Aquatronica Power Bar 6, you must already have an Aquatronica controller. The power bar does not function as a stand-alone smart power strip. The setup process involves:

• Connecting the devices: Plug your aquarium equipment (e.g., pumps, filters) into the six sockets on the power bar.
• Connecting the controller: Connect the power bar to the central Aquatronica controller unit, such as the Touch Controller.
• Automatic recognition: The controller automatically recognizes the power bar and makes the necessary menus and functions available.
• Configuration and programming: Use the controller's interface to program timers for individual sockets, set up special effects, or establish monitoring protocols for your equipment.

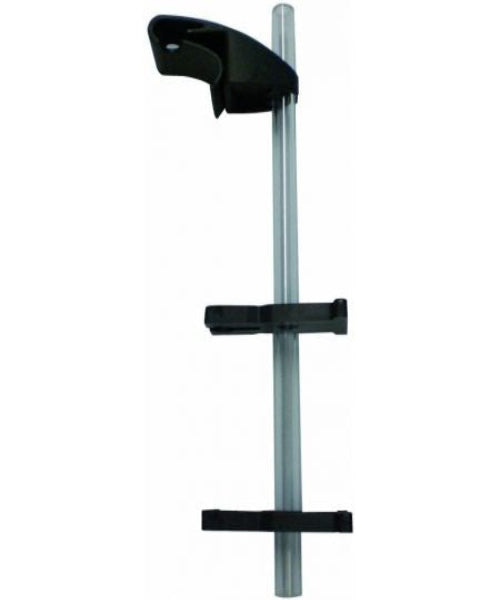

The Aquatronica Electrode holder (ACQ-420) is designed to secure Aquatronica probes and electrodes within an aquarium or sump. Unlike suction-cup mounts, the ACQ-420 attaches mechanically to the glass, providing a more reliable and secure long-term hold that prevents inaccurate readings due to movement.

Features & Benefits

• Secure mounting: The holder attaches mechanically to the aquarium glass to prevent accidental movement of the probes.
• Wide compatibility: The holder is designed to fit all types of Aquatronica probes and electrodes.
• Alternative to suction cups: Provides a more reliable and durable mounting solution compared to suction cups, which can lose their grip over time.

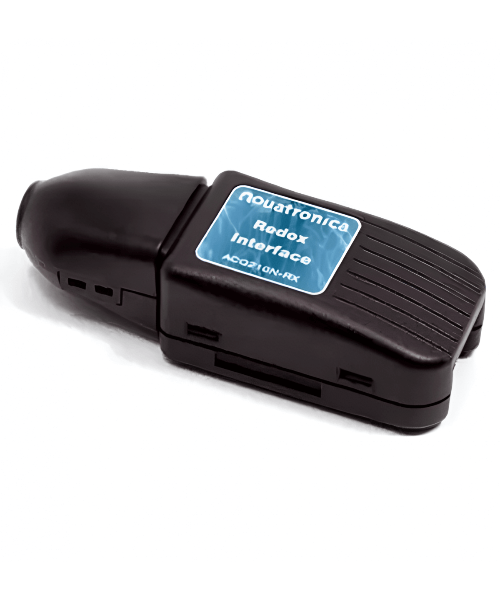

The Aquatronica Interface Redox (model ACQ210N-RX) is a modular component for the Aquatronica aquarium controller system. It is used to measure and monitor the Oxidation-Reduction Potential (ORP), also known as Redox, of the water in your aquarium when connected to a compatible Aquatronica ORP electrode.

Features & Benefits:

• Plug-and-play installation: The interface is automatically recognized by the Aquatronica system as soon as it is connected, enabling the relevant configuration menus.
• ORP monitoring: When used with an ORP electrode, the interface measures the water's oxidizing capacity in millivolts (mV). A high ORP value indicates more oxidization, while a low value indicates more reduction.
• Parameter control: By connecting the interface to the Aquatronica controller, you can automate devices, such as an ozone reactor, based on the ORP readings.
• Compatibility: The Redox interface is compatible with the main Aquatronica control systems, including the Touch Controller and Black Box Controller.
• Alerts and automation: If you use a system that is connected to the internet, such as the Touch Controller, you can set up alerts via email or app notifications to warn you of abnormal Redox values. You can also program the system to take corrective action automatically.

What is Redox/ORP?

Redox potential is a key indicator of water quality and the overall health of an aquarium's water, particularly in a reef tank.

• How it works: ORP measures the concentration of oxidizing agents (which break down organic waste) versus reducing agents (which promote the breakdown of organic waste) in your water.
• What it indicates: A significant drop in ORP can signal a problem in the tank, such as a large die-off of organisms or an excess of organic pollutants. Monitoring the trends of your ORP over time is often more important than the specific number at any given moment.
• Ideal range for reef tanks: An ideal ORP level is typically in the range of 300 to 400 mV, which helps maintain water quality and inhibit the growth of harmful microorganisms.

What you need to get started

To use the Aquatronica Interface Redox for monitoring and control, you will need the following components:

• Aquatronica controller: A base unit, such as the Aquatronica Touch Controller, is required to manage the Redox interface and display the readings.
• Aquatronica ORP electrode: The interface requires a separate Aquatronica ORP electrode (probe) to take measurements.
• Calibration solution: An ORP probe needs to be regularly calibrated to ensure accuracy, typically every 4 to 6 weeks. The Aquatronica system can be calibrated with a specific 465 mV calibration solution.
• Probe holder (optional): A probe bracket can be used to securely mount the ORP electrode in your aquarium or sump.

• System integration: It connects to the main Aquatronica system via a BUS connection cable. Multiple interfaces, including several of the same type, can be connected to the system at the same time.
• Alarm functionality: The system is compatible with specific modules, such as Ethernet or GSM, which allow for alarm signals to be sent via email or SMS.
• Connections: The interface consists of a BUS connector for the system connection and a standard BNC connector for attaching the pH electrode.

What you need to use the interface:

• Aquatronica control unit: The interface is an add-on module for the larger Aquatronica system, such as the Aquarium Controller Evolution or the Touch Controller.
• Aquatronica pH electrode: The interface requires a separate pH probe, such as the Aquatronica pH Electrode (ACQ310N-PH), to function.
• Calibration fluid: You will need calibration fluids, such as Aquatronica pH 4, pH 7, and pH 10 solutions, to calibrate the pH electrode and ensure accurate readings.

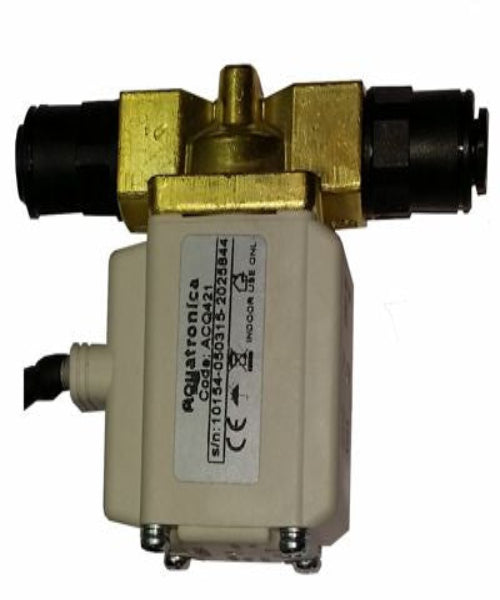

The Aquatronica Solenoid Valve Water/CO2 (product code ACQ421) is a solenoid valve accessory for the Aquatronica Aquarium Controller System. It is used to automatically control the flow of water for applications like an automatic top-off system, or to control the flow of carbon dioxide (CO2) for planted aquariums.

Features & Benefits:

• Function: An NC (Normally Closed) valve, meaning it is closed when unpowered and opens when electricity is applied.
• Compatibility: Designed to work as a plug-and-play accessory with Aquatronica's main controller units, such as the Aquarium Controller Evolution and the Touch Controller.
• Power: Operates on a 220V, 50 Hz AC power source, designed for the European market.
• Application: Can be used for various aquarium control tasks, including:
• Osmosis systems: Automating the refilling of evaporated water.
• CO2 injection: Controlling the flow of CO2 for planted freshwater aquariums.
• System integration: When connected to an Aquatronica power bar, the controller will automatically detect the solenoid and allow you to program its functions.

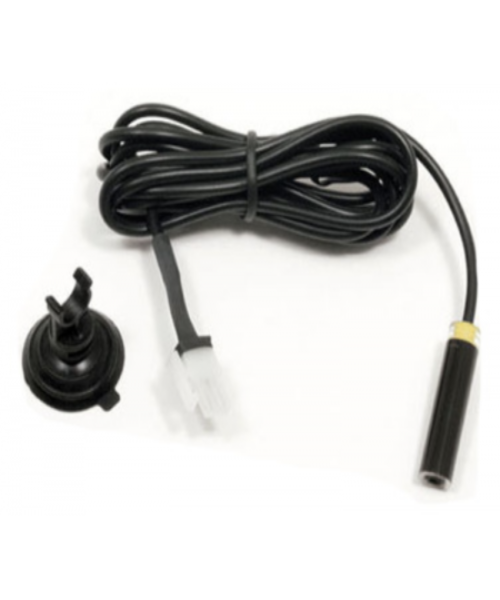

The Aquatronica Temperature Probe (ACQ001S) is a sensor used for continuously measuring the temperature of water in an aquarium. It is compatible with the Aquatronica Aquarium Controller System, and its readings can be manually calibrated through the control unit.

Compatibility and Usage:

• Plug & Play: The probe is automatically identified by the Aquatronica controller system when connected.
• Connectivity: It can be connected to the controller system through a dedicated Aquatronica Temperature & Level Interface (ACQ210N-TL) or, in some cases, directly to the power supply unit. The interface is needed to add additional temperature and level sensors.
• Continuous immersion: The probe is designed to be placed in the water to provide constant temperature readings.
• Calibration: While the temperature sensor comes factory-calibrated, it can be manually adjusted via the control unit if you want to match the readings to another thermometer in your tank.
